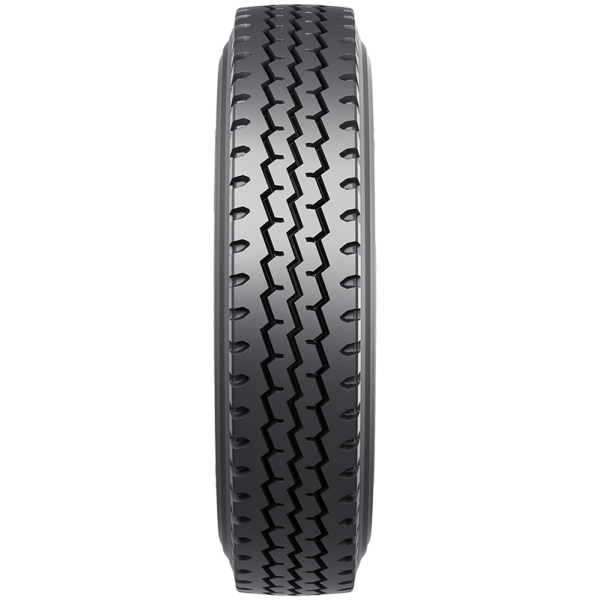

BST 68A_Long Haul_Products_BESTANG

Long Haul

Long Haul

Long Haul

All position axles
For regional application on various roads

Parameters

+315/80R22.5

20PRPR
312SECTION WIDTH
1076OVERALL DIAMETER
156/150LOAD INDEX
4000/3350MAX.LOAD (kg)
850/850PRESSURE (kpa)
MSPEED RATING
9STANDARD RIM
15TREAD DEPTH (mm)

+315/80R22.5

20PRPR
312SECTION WIDTH
1076OVERALL DIAMETER
156/150LOAD INDEX
4000/3350MAX.LOAD (kg)
850/850PRESSURE (kpa)
LSPEED RATING
9STANDARD RIM
15TREAD DEPTH (mm)

+315/80R22.5

20PRPR
312SECTION WIDTH
1076OVERALL DIAMETER
157/154LOAD INDEX
4125/3750MAX.LOAD (kg)
900/900PRESSURE (kpa)
KSPEED RATING
9STANDARD RIM
15TREAD DEPTH (mm)

+315/80R22.5

18PRPR
312SECTION WIDTH
1076OVERALL DIAMETER
154/151LOAD INDEX
3750/3450MAX.LOAD (kg)
830/830PRESSURE (kpa)
MSPEED RATING
9STANDARD RIM
15TREAD DEPTH (mm)

+12R22.5

20PRPR
320SECTION WIDTH
1124OVERALL DIAMETER
156/153LOAD INDEX
4000/3650MAX.LOAD (kg)
930/930PRESSURE (kpa)
KSPEED RATING
9.75STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

18PRPR
320SECTION WIDTH
1124OVERALL DIAMETER
156/150LOAD INDEX
4000/3350MAX.LOAD (kg)
875/875PRESSURE (kpa)
KSPEED RATING
9.75STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

18PRPR
320SECTION WIDTH
1124OVERALL DIAMETER
156/150LOAD INDEX
4000/3350MAX.LOAD (kg)
875/875PRESSURE (kpa)
LSPEED RATING
9.75STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

18PRPR
320SECTION WIDTH
1124OVERALL DIAMETER
154/151LOAD INDEX
3750/3450MAX.LOAD (kg)
830/830PRESSURE (kpa)
MSPEED RATING
9.75STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

16PRPR
320SECTION WIDTH
1124OVERALL DIAMETER
152/149LOAD INDEX
3550/3250MAX.LOAD (kg)
760/760PRESSURE (kpa)
MSPEED RATING
9.75STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

18PRPR
300SECTION WIDTH
1085OVERALL DIAMETER
152/149LOAD INDEX
3550/3250MAX.LOAD (kg)
930/930PRESSURE (kpa)
LSPEED RATING
9STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

18PRPR
300SECTION WIDTH
1085OVERALL DIAMETER
152/149LOAD INDEX
3550/3250MAX.LOAD (kg)
930/930PRESSURE (kpa)
LSPEED RATING
9STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

16PRPR
300SECTION WIDTH
1085OVERALL DIAMETER
150/147LOAD INDEX
3350/3075MAX.LOAD (kg)
830/830PRESSURE (kpa)
LSPEED RATING
9STANDARD RIM
17.5TREAD DEPTH (mm)

+12R22.5

14PRPR
300SECTION WIDTH
1085OVERALL DIAMETER
146/143LOAD INDEX
3000/2725MAX.LOAD (kg)
720/720PRESSURE (kpa)
LSPEED RATING
9STANDARD RIM
17.5TREAD DEPTH (mm)

+11R22.5

16PRPR
279SECTION WIDTH
1050OVERALL DIAMETER
148/145LOAD INDEX
3150/2900MAX.LOAD (kg)
850/850PRESSURE (kpa)
MSPEED RATING
8.25STANDARD RIM
16TREAD DEPTH (mm)

+11R22.5

16PRPR
279SECTION WIDTH
1054OVERALL DIAMETER
146/143LOAD INDEX
3000/2725MAX.LOAD (kg)
830/830PRESSURE (kpa)
MSPEED RATING
8.25STANDARD RIM
16TREAD DEPTH (mm)

+11R22.5

14PRPR
279SECTION WIDTH
1054OVERALL DIAMETER
144/142LOAD INDEX
2800/2650MAX.LOAD (kg)
720/720PRESSURE (kpa)
MSPEED RATING
8.25STANDARD RIM
16TREAD DEPTH (mm)

+12.00R24

20PRPR
315SECTION WIDTH
1226OVERALL DIAMETER
160/157LOAD INDEX
4500/4125MAX.LOAD (kg)
900/900PRESSURE (kpa)
KSPEED RATING
8.5STANDARD RIM
17TREAD DEPTH (mm)

+12.00R24

20PRPR
315SECTION WIDTH
1226OVERALL DIAMETER
160/157LOAD INDEX
4500/4125MAX.LOAD (kg)
900/900PRESSURE (kpa)
JSPEED RATING
8.5STANDARD RIM
17TREAD DEPTH (mm)

+12.00R24

18PRPR
315SECTION WIDTH
1226OVERALL DIAMETER
158/155LOAD INDEX
4250/3875MAX.LOAD (kg)
830/830PRESSURE (kpa)
JSPEED RATING
8.5STANDARD RIM
17TREAD DEPTH (mm)

+12.00R20

20PRPR
315SECTION WIDTH
1125OVERALL DIAMETER
156/153LOAD INDEX
4000/3650MAX.LOAD (kg)
900/900PRESSURE (kpa)
KSPEED RATING
8.5STANDARD RIM
15TREAD DEPTH (mm)

+12.00R20

18PRPR
315SECTION WIDTH
1125OVERALL DIAMETER
154/151LOAD INDEX
3750/3450MAX.LOAD (kg)
830/830PRESSURE (kpa)
LSPEED RATING
8.5STANDARD RIM
15TREAD DEPTH (mm)

+11.00R20

18PRPR
293SECTION WIDTH
1085OVERALL DIAMETER
152/149LOAD INDEX
3550/3250MAX.LOAD (kg)
930/930PRESSURE (kpa)
KSPEED RATING
8STANDARD RIM
17TREAD DEPTH (mm)

+11.00R20

16PRPR
293SECTION WIDTH
1085OVERALL DIAMETER
150/147LOAD INDEX
3350/3075MAX.LOAD (kg)
830/830PRESSURE (kpa)
LSPEED RATING
8STANDARD RIM
17TREAD DEPTH (mm)

+10.00R20

18PRPR
278SECTION WIDTH
1054OVERALL DIAMETER
149/146LOAD INDEX
3250/3000MAX.LOAD (kg)
930/930PRESSURE (kpa)
KSPEED RATING
7.5STANDARD RIM
16.5TREAD DEPTH (mm)

+10.00R20

16PRPR
278SECTION WIDTH
1054OVERALL DIAMETER
146/142LOAD INDEX
3000/2630MAX.LOAD (kg)
840/770PRESSURE (kpa)
LSPEED RATING
7.5STANDARD RIM
16.5TREAD DEPTH (mm)

+10.00R20

16PRPR
278SECTION WIDTH
1054OVERALL DIAMETER
146/143LOAD INDEX
3000/2725MAX.LOAD (kg)
830/830PRESSURE (kpa)
LSPEED RATING
7.5STANDARD RIM
16.5TREAD DEPTH (mm)

+9.00R20

16PRPR
259SECTION WIDTH
1019OVERALL DIAMETER
144/142LOAD INDEX
2800/2650MAX.LOAD (kg)
900/900PRESSURE (kpa)
KSPEED RATING
7STANDARD RIM
15.5TREAD DEPTH (mm)

+9.00R20

14PRPR
259SECTION WIDTH
1019OVERALL DIAMETER
141/139LOAD INDEX
2575/2430MAX.LOAD (kg)
790/790PRESSURE (kpa)
LSPEED RATING
7STANDARD RIM
15.5TREAD DEPTH (mm)

+8.25R20

16PRPR
236SECTION WIDTH
974OVERALL DIAMETER
139/137LOAD INDEX
2430/2300MAX.LOAD (kg)
930/930PRESSURE (kpa)
KSPEED RATING
6.5STANDARD RIM
13.5TREAD DEPTH (mm)

+8.25R20

14PRPR
236SECTION WIDTH
974OVERALL DIAMETER
136/134LOAD INDEX
2240/2120MAX.LOAD (kg)
830/830PRESSURE (kpa)
KSPEED RATING
6.5STANDARD RIM
13.5TREAD DEPTH (mm)

+8.25R20

12PRPR
236SECTION WIDTH
974OVERALL DIAMETER
133/131LOAD INDEX
2060/1950MAX.LOAD (kg)
720/720PRESSURE (kpa)
LSPEED RATING
6.5STANDARD RIM
13.5TREAD DEPTH (mm)

+7.50R20

14PRPR
215SECTION WIDTH
935OVERALL DIAMETER
130/128LOAD INDEX
1900/1800MAX.LOAD (kg)
830/830PRESSURE (kpa)
KSPEED RATING
6STANDARD RIM

+7.50R20

12PRPR
215SECTION WIDTH
935OVERALL DIAMETER
128/126LOAD INDEX
1800/1700MAX.LOAD (kg)
760/760PRESSURE (kpa)
LSPEED RATING
6STANDARD RIM

+8.25R16LT

16PRPR
235SECTION WIDTH
855OVERALL DIAMETER
128/124LOAD INDEX
1800/1600MAX.LOAD (kg)
770/770PRESSURE (kpa)
LSPEED RATING
6.50HSTANDARD RIM
12TREAD DEPTH (mm)

+8.25R16LT

16PRPR
235SECTION WIDTH
855OVERALL DIAMETER
128/124LOAD INDEX
1800/1600MAX.LOAD (kg)
770/770PRESSURE (kpa)
KSPEED RATING
6.50HSTANDARD RIM
12TREAD DEPTH (mm)

+8.25R16LT

14PRPR
235SECTION WIDTH
855OVERALL DIAMETER
126/122LOAD INDEX
1700/1500MAX.LOAD (kg)
670/670PRESSURE (kpa)
LSPEED RATING
6.50HSTANDARD RIM
12TREAD DEPTH (mm)

+7.50R16LT

16PRPR
215SECTION WIDTH
805OVERALL DIAMETER
124/120LOAD INDEX
1600/1405MAX.LOAD (kg)
800/800PRESSURE (kpa)
LSPEED RATING
6.00GSTANDARD RIM
12TREAD DEPTH (mm)

+7.50R16LT

16PRPR
215SECTION WIDTH
805OVERALL DIAMETER
124/120LOAD INDEX
1600/1405MAX.LOAD (kg)
800/800PRESSURE (kpa)
KSPEED RATING
6.00GSTANDARD RIM
12TREAD DEPTH (mm)

+7. 50R16LT

14PRPR
215SECTION WIDTH
805OVERALL DIAMETER
122/118LOAD INDEX
1500/1320MAX.LOAD (kg)
770/770PRESSURE (kpa)
LSPEED RATING
6.00GSTANDARD RIM
12TREAD DEPTH (mm)

+7. 50R16LT

12PRPR
215SECTION WIDTH
805OVERALL DIAMETER
120/116LOAD INDEX
1400/1250MAX.LOAD (kg)
670/670PRESSURE (kpa)
LSPEED RATING
6.00GSTANDARD RIM
12TREAD DEPTH (mm)
